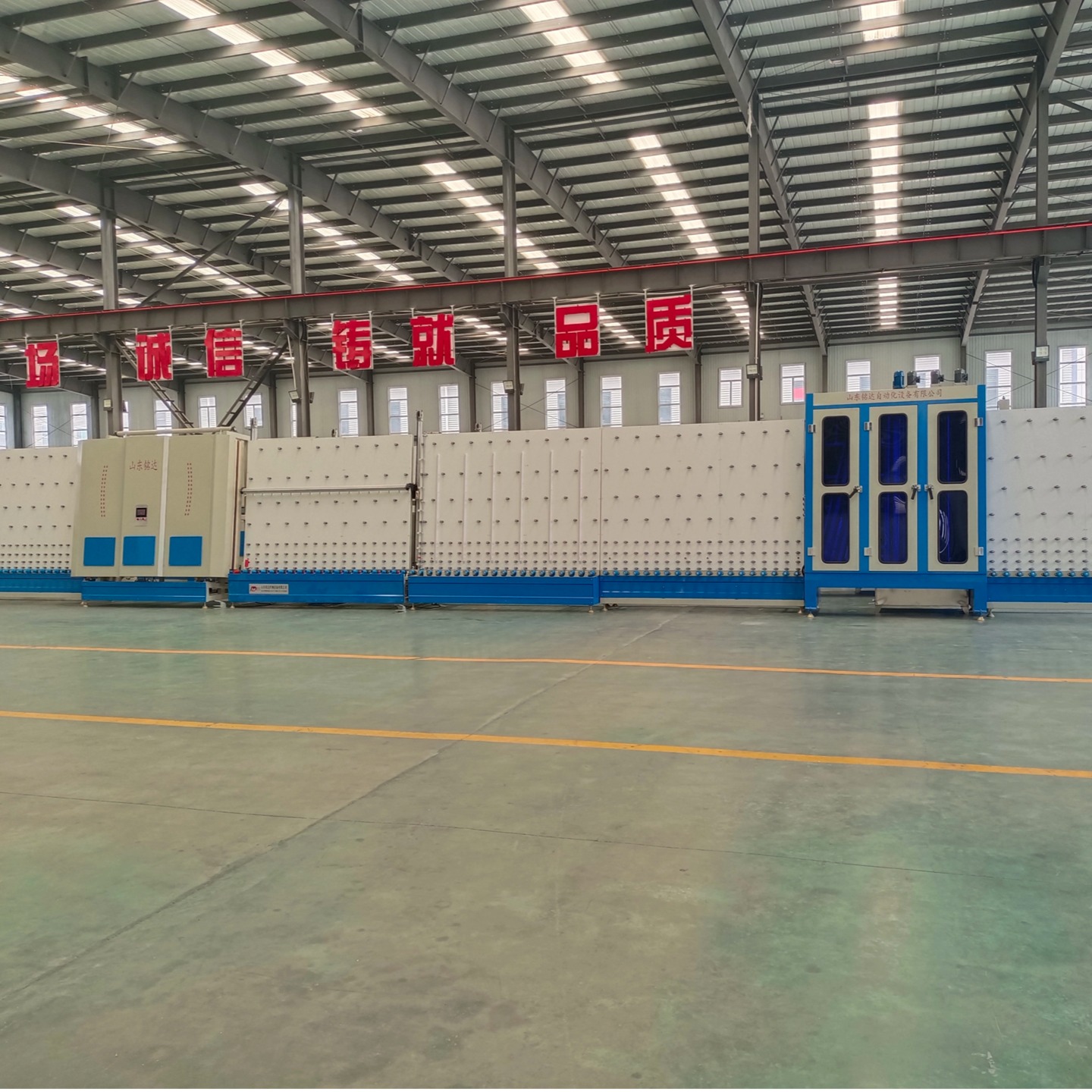

Insulating glass production line

LBP2030

Equipment Features

1.Automatic discern the membrane of the coated glass and the low-emission glass,and digisplay.

2.Static state put glass when add glass material,ensure safety in production.

3.The washing machine adopts stainless steel and other corrosion resistant material,good water proof,security,hygiene,and long useful life.

4.Can clean 3-12mm thickness glass,wide sphere of application.

5.Resonable combine the inner and out assemble glass.That can process same edge glass,different edge glass,and double insulating glass i.e. three layers glass with high efficiency.

6.Adopts the world famous brand low-voltage apparatus,sensor and PLC,etc.

7.Adopts touch screen human-computer interface,easy to operate,and can self-diagnosis the equipment's fault with high degree of automation.

8.Treat the surface of plate guard through baking paint,powder coated.Appearance beauty and wear well.

9.The plate press part can be opened in large journey to max.500mm,that easy to maintenance.

10.The dry part use circulation hot wind that ensure the dry effect for glass and reduce the noise.

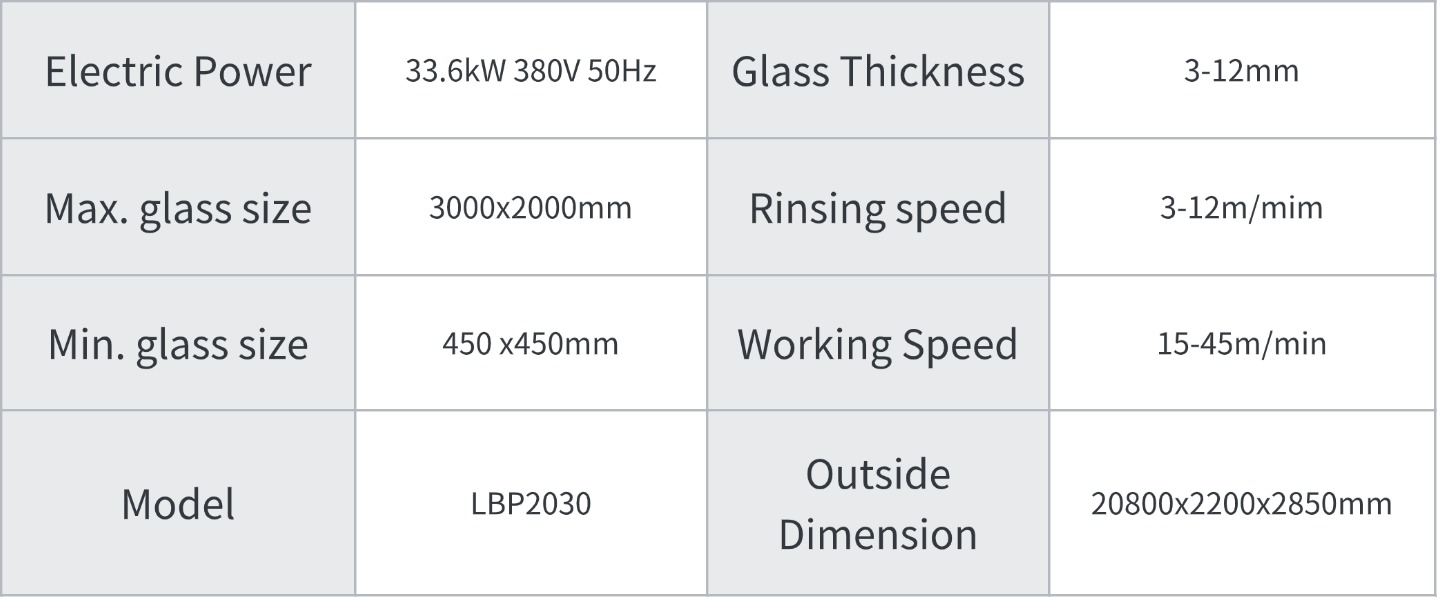

Technical Parameter
